Pipe to Pipe Connector
Quick-connect design. Superior reliability & longevity. Largest fitting configurations available. Modular & reusable. 100% recyclable & non-flammable materials.Pa
Quick-connect design. Superior reliability & longevity. Largest fitting configurations available. Modular & reusable. 100% recyclable & non-flammable materials.

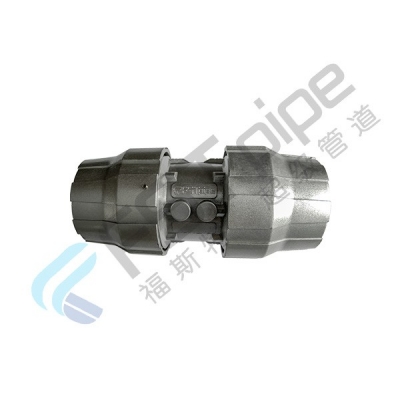

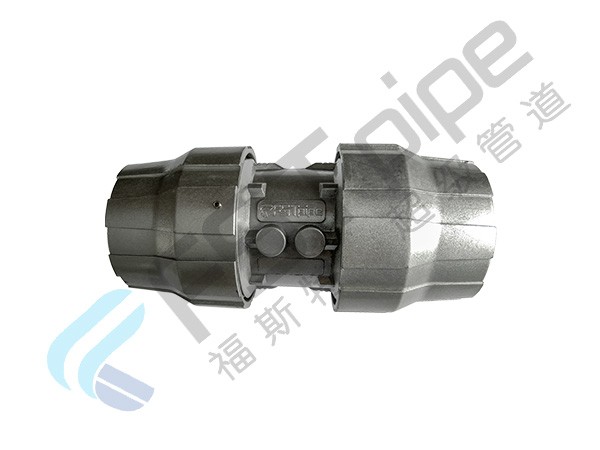

Equal Pipe to Pipe Connector
| Part Number | øD | Qty/Box | H.S.Code | Description |
| 1622 0200 | 20 | 30 | 76090000 | Aluminum washer, with stainless steel internals |
| 1633 0200 | 25 | 16 | 76090000 | Aluminum washer, with stainless steel internals |
| 1644 0200 | 32 | 20 | 76090000 | Aluminum washer, with stainless steel internals |
| 06A 4402 00 | 40 | 18 | 76090000 | Aluminum washer, with stainless steel internals |
| 06A 5502 01 | 50 | 13 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 06A 6602 01 | 63 | 8 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 06A 8802 01 | 80 | 4 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 2015 9902 01 | 100 | 6 | 76090000 | SPCD, DN100, suitable for bead rolled pipe |

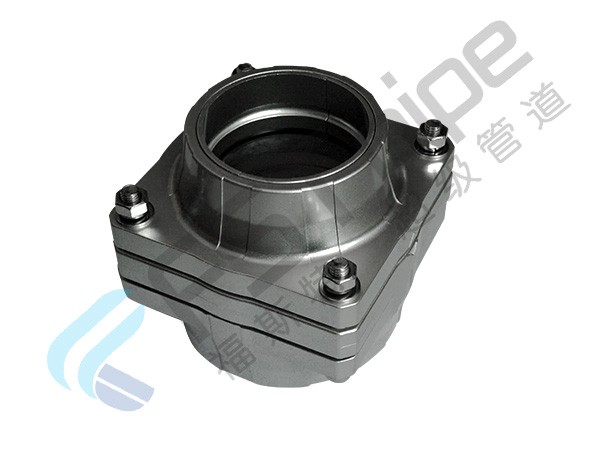

| F16 CC02 00 | 125 | 1 | 76090000 | Square equal socket, suitable for bead rolled pipe |
| 2015 AA02 01 | 150 | 3 | 76090000 | Suitable for bead rolled pipe |
| 2015 BB02 01 | 200 | 1 | 76090000 | Suitable for bead rolled pipe |

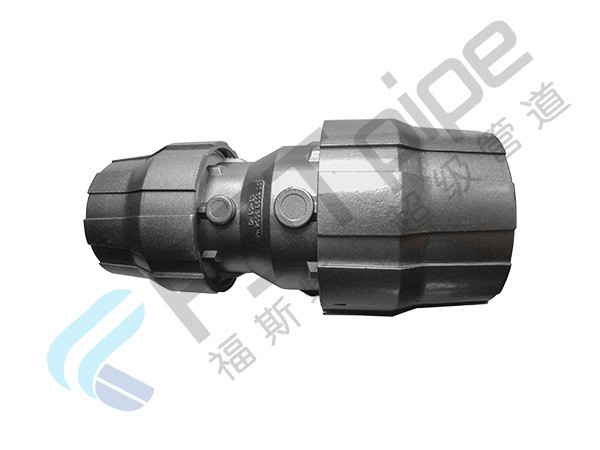

Reducing Pipe to Pipe Connector
| Part Number | øD | Qty/Box | H.S.Code | Description |
| 1632 0900 | 25×20 | 24 | 76090000 | Aluminum washer, with stainless steel internals |
| 1642 0900 | 32×20 | 24 | 76090000 | Aluminum washer, with stainless steel internals |
| 1643 0900 | 32×25 | 20 | 76090000 | Aluminum washer, with stainless steel internals |
| 06A 4309 00 | 40×32 | 20 | 76090000 | Aluminum washer, with stainless steel internals |
| 06A 5409 01 | 50×40 | 36 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 06A 6509 01 | 63×50 | 30 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 06A 8509 01 | 80×50 | 18 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 06A 8609 01 | 80×63 | 15 | 76090000 | Auminum washer, suitable for bead rolled pipe |
| 2015 9509 01 | 100×50 | 14 | 76090000 | One side straight plug, the other side match a set of DN100 equal sockets, suitable for bead rolled pipe |
| 2015 9609 01 | 100×63 | 8 | 76090000 | One side straight plug, the other side match a set of DN100 equal sockets, suitable for bead rolled pipe |
| 2015 9809 01 | 100×80 | 8 | 76090000 | One side straight plug, the other side match a set of DN100 equal sockets, suitable for bead rolled pipe |
| F16 C909 00 | 125×100 | 4 | 76090000 | DN125-100 square reducing socket |
| 2015 A909 00 | 150×100 | 6 | 76090000 | Suitable for bead rolled pipe, need to match 1 set of DN150 equal sockets and 1 set of DN100 equal sockets |
| 2015 AC09 00 | 150×125 | 6 | 76090000 | Suitable for bead rolled pipe, need to match 1 set of DN150 equal sockets and 1 set of DN125 equal sockets |
| 16B 90900 | 200×100 | 2 | 76090000 | Suitable for bead rolled pipe, need to match 1 set of DN200 equal sockets and 1 set of DN100 equal sockets |
| 2015 BC09 00 | 200×125 | 4 | 76090000 | Suitable for bead rolled pipe, need to match 1 set of DN200 equal sockets and 1 set of DN125 equal sockets |
| 16B A090 0 | 200×150 | 2 | 76090000 | Suitable for bead rolled pipe, need to match 1 set of DN200 equal sockets and 1 set of DN150equal sockets, lathe aluminum |
