Fluid: compressed air, vacuum, nitrogen, inert gas, etc. / Material: ductile aluminum alloy (aluminum alloy 6063), density 2.7Kg / dm / treatment: external epoxy resin, internal anodizing / coating: electrostatic spraying RAL5015 , thickness = 70 +/- 10 μm / temperature: -29 ° C - + 80 ° C / pipe quality: calibrated, accurate extrusion process / maximum working pressure: 13 bar / vacuum: 0.013 bar (absolute pressure) / pipe length : 6m or 3m.

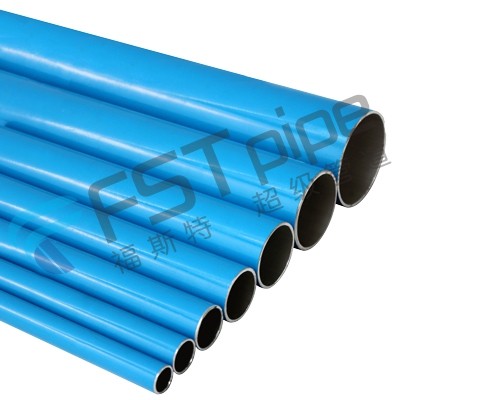

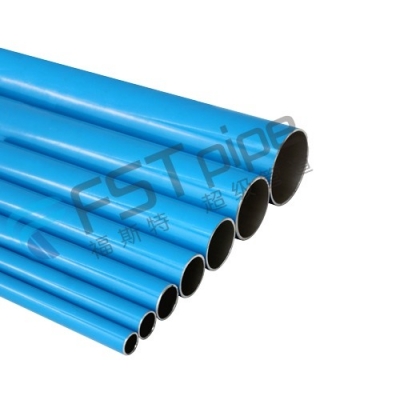

Up to max.200mm diameter. High-quality powder coating available in blue, gray and yellow. Designed for compressed air, vacuum, and inert gases Light-weight & corrosion-free.
| Part Number | øD | Length(mm) | Bar/Box | H.S.Code | Description |
| 1722 6000 | 20 | 600 | 20 | 7608201090 | De20X1.45mm |
| 1733 6000 | 25 | 600 | 15 | 7608201090 | De25X1.45mm |
| 2015 3360 00 | 32 | 600 | 10 | 7608201090 | DN32X1.6mm |
| 2015 4460 00 | 40 | 600 | 8 | 7608201090 | DN40X1.8mm |
| 2015 5560 00 | 50 | 600 | 6 | 7608201090 | DN50X2.1mm |
| 2015 5560 01 | 50 | 600 | 4 | 7608201090 | DN50X2.1mm, one end Bead rolled |
| 2015 6660 00 | 63 | 600 | 4 | 7608201090 | DN63X2.3mm |
| 2015 6660 01 | 63 | 600 | 2 | 7608201090 | DN63X2.3mm, one end Bead rolled |
| 2015 8860 00 | 80 | 600 | 2 | 7608201090 | DN80X2.6mm |
| 2015 8860 01 | 80 | 600 | 1 | 7608201090 | DN80X2.6mm, one end Bead rolled |
| 2015 9960 00 | 100 | 600 | 1 | 7608201090 | DN100X2.6mm |
| 2015 9960 02 | 100 | 600 | 1 | 7608201090 | DN100X2.6mm, both ends Bead rolled |
| 16CC 6000 | 125 | 600 | 1 | 7608209990 | DN125X2.75mm |
| 16CC 6002 | 125 | 600 | 1 | 7608209990 | DN125X2.75mm, both ends Bead rolled |
| 2015 AA60 00 | 150 | 600 | 1 | 7608209990 | DN150X3mm |
| 2015 AA60 02 | 150 | 600 | 1 | 7608209990 | DN150X3mm, both ends Bead rolled |
| 2015 BB60 00 | 200 | 600 | 1 | 7608209990 | DN200X3.2mm |
| 2015 BB60 02 | 200 | 600 | 1 | 7608209990 | DN200X3.2mm, both ends Bead rolled |
